Rosemount 2090F Hygienic Pressure Transmitter
A sanitary pressure transmitter with Tri-Clamp connection, built to 3-A Sanitary Standards and USDA accepted design for food and pharmaceutical process pressure measurement, supplied to Canadian industry with duty-paid delivery.
Instrubiz sources genuine Rosemount 2090F transmitters for food, beverage, and pharmaceutical manufacturing facilities across Ontario, and process operations across Alberta.
Competitive Pricing
Genuine components, fair market rates
Efficient Lead Times
Clear stock & delivery communication
Duty-Paid Delivery
Door-to-door across Canada, no surprises

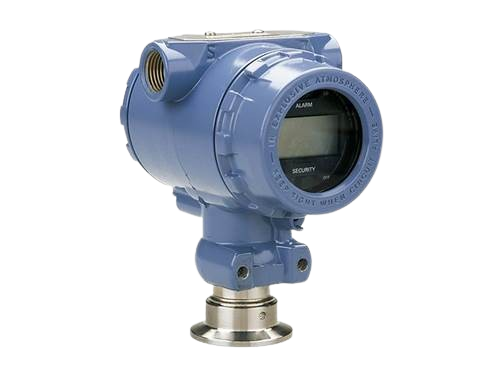

Rosemount 2090F Hygienic Pressure Transmitter Overview
Sanitary Pressure Measurement for Food and Pharmaceutical Applications
The Rosemount 2090F Hygienic Pressure Transmitter measures absolute or gauge pressure through a 1.5 or 2 inch Tri-Clamp connection, the standard fitting across hygienic food, beverage, and pharmaceutical systems. It conforms to 3-A Sanitary Standards and carries a USDA accepted design, and supports CIP and SIP cleaning cycles at process temperatures up to 284 degrees Fahrenheit (140 degrees Celsius).
A single-filled sensor system delivers accuracy of plus or minus 0.20 percent of span across a 20:1 rangeability, covering absolute or gauge ranges from 0 to 1.5 psi up to 0 to 300 psi. Output is 4-20 mA with HART protocol.
This is a specialized, lower-volume product built around the sanitary connection and cleaning-cycle requirements rather than the accuracy or rangedown Rosemount’s process-industry platforms compete on. Typical duty includes fermentation vessel pressure, CIP source center discharge pressure, spray-dry line pressure, homogenizer or separator stuffing pressure, and HTST pasteurization back-pressure control.
A single-filled sensor system delivers accuracy of plus or minus 0.20 percent of span across a 20:1 rangeability, covering absolute or gauge ranges from 0 to 1.5 psi up to 0 to 300 psi. Output is 4-20 mA with HART protocol.
This is a specialized, lower-volume product built around the sanitary connection and cleaning-cycle requirements rather than the accuracy or rangedown Rosemount’s process-industry platforms compete on. Typical duty includes fermentation vessel pressure, CIP source center discharge pressure, spray-dry line pressure, homogenizer or separator stuffing pressure, and HTST pasteurization back-pressure control.
Sensing Principle
Single-Filled Sanitary Sensor
Measures
Absolute / Gauge Pressure
Process Connection
1.5″ or 2″ Tri-Clamp
Certification
3-A Sanitary Standards, USDA Accepted Design
Need pricing for the Rosemount 2090F Hygienic Pressure Transmitter?
Rosemount 2090F Product Detail
The Rosemount 2090F Hygienic Pressure Transmitter
2090F
Rosemount 2090F Hygienic Pressure Transmitter
Measures absolute or gauge pressure through a 1.5 or 2 inch Tri-Clamp connection, built to 3-A Sanitary Standards with CIP/SIP capability to 140 degrees Celsius, for food and pharmaceutical process pressure measurement.
Rosemount 2090F Hygienic Pressure Transmitter Base Model Numbers
Rosemount 2090F Hygienic Pressure Transmitter, base model numbers
Base model codes confirmed from Rosemount’s published ordering documentation.
| Model | Type | Status |
|---|---|---|
| Rosemount 2090F | Hygienic Absolute / Gauge Pressure | Available to Order |
Applications
Rosemount 2090F Hygienic Pressure Transmitter applications
Food & Beverage Processing
Fermentation vessel pressure, spray-dry line pressure, and homogenizer or separator stuffing pressure.
Dairy & HTST Pasteurization
Back-pressure control on high-temperature short-time pasteurization lines.
Pharmaceutical & Life Sciences
Sanitary process pressure measurement on CIP and SIP-cleaned systems.
Clean-In-Place (CIP) Systems
CIP source center discharge pressure monitoring.
Preventative Maintenance
A modest investment in reliable pressure measurement directly protects facility and equipment investments from unplanned breakdowns.
Regions We Serve
Where Instrubiz Supports the 2090F in Canada
Alberta
Alberta’s food and beverage processors specify the 2090F where a sanitary Tri-Clamp connection and CIP/SIP compatibility are required. Instrubiz supplies genuine 2090F transmitters for both new installations and replacements.
Ontario
Ontario’s food, beverage, and pharmaceutical manufacturing facilities are the primary market for the 2090F in Canada. Instrubiz supplies genuine 2090F transmitters with the technical background to help confirm the right configuration for CIP and SIP-cleaned systems.
